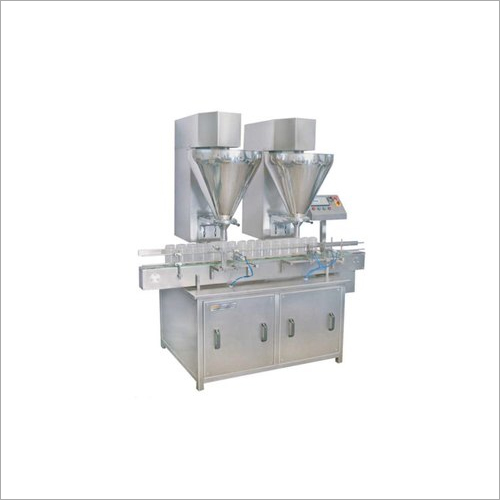

Automatic Augur Type Dry Powder Filling Machine

Model

JAPF-1

JAPF-2

Output/Minute

1200 to 1800
(UP to 25 gms Filling Size)
800 to 1200
(Above 25 gms Filling Size)

2400 to 3600
(UP to 25 gms Filling Size)
1200to 2400
(Above 25 gms Filling Size)

Direction of Movement

Left to Right

Left to Right

Number of Filling Head

1 Head

2 Head

Electrical Specification

Main Motor

0.5 HP / 415 Volts / 50 Hz

0.5 HP / 415 Volts / 50 Hz. - 2 Nos.

Conveyor Motor

0.5 HP / 415 Volts / 50 Hz

0.5 HP / 415 Volts / 50 Hz

Servo Motor

750 Watt

750 Watt -2 Nos

Air Consumption

4 - 6 Kg. Pressure

4 - 6 Kg. Pressure
