Automatic Sleeve Applicator

Automatic Sleeve Applicator

1200000 INR/Piece

Product Details:

X

Price And Quantity

  • 1 , , Set
  • 1200000 INR/Piece

Trade Information

  • 1-2 , , Set Per Month
  • 15 Days

Product Description

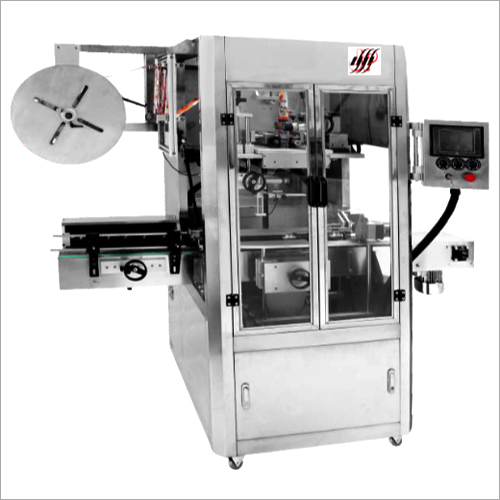

The provided Automatic Sleeve Applicator is configured to embed sleeve with a coveted place on different shape and size of containers. This model is appropriate for an assortment of businesses with a chance to decrease work expense and enhance production rates. The machine has incorporated elements of classifying and conveying containers for precise label cutting or sleeving and appropriate positioning sleeve on the containers.

Our Automatic Sleeve Applicator is built on solid welded steel framework that is totally encased in S. S. sheet and aluminum alloy material. This unit consists of a Sleeve loader-transporter assembly, brush assembly, controlling assembly, optical scanner, cutter mechanism, a bottle positioning mechanism, center pillar and more. This Automatic Sleeve Applicator runs with incredible simplicity, minimal handling and high proficiency with manufacturing limit of over 300 BPM.

Striking Highlights:

  1. Inflexible Structure built S. S and anodizing aluminum amalgam
  2. Completely programmed machine alongside speed of over 300 BPM
  3. No container and no sleeve
  4. Statics charges removal framework for precise sleeve positioning
  5. Absolutely PLC control framework
  6. No devices are required for changeovers
  7. The servo-based speed with exact length sleeve rotary sleeve cutter and feeding system
  8. Online speed can differ and completely synchronized with all system
  9. Appropriate for the different shape of corrugated containers, tin, pet, plastic, and glass

Optional Features:

  1. The machine stops with an alarm with sleeve label roll is empty
  2. Online pneumatic integrated item dismissal framework
  3. Tower light: Demonstrate the status of the procedure
  4. Online Printer is provided

Technical specification

Model

UPSSA 100

UPPSA200

UPSSA300

Output/Min.*

Up to 100

Up to 200

Up to 300

Container Size

28mm -125mm, 32omm Height Max.

Length of Sleeve

30mm - 250mm

Thickness of Sleeve

0.035mm - 0.75mm

Label Material

PVC, PET, OPS, PLA

Sleeve Roll Inner Dia.

24 (101 .6mm)

Sleeve Roll Outer Dia.

40omm

Height of Conveyor**

860-910 mm

Electrical Rating

1.5KW-2KW, 38oV AC, 50/6oHZ, 3- Phase

Change Parts**

(A) Center Pillar (B) Worm (C) Cutter
